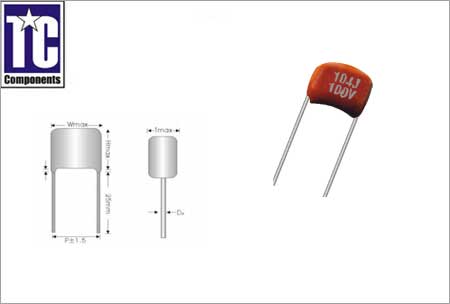

Sub- Miniature Dip Type 5mm Pitch Capacitors         Construction CL-21 X is non-inductively wound with metalized polyester film as the dielectric / > electrode with copper-clad steel leads and epoxy resin coating   Features Wide capacitance range, small size, high capacitance rate Long life due to self-healing effect Suitable for blocking, by pass and coupling of DC and signals of VHF range Widely used in filter,noice suppression and low pulse circuits   General Specification Description MEF Mini CL21x Reference Standard IEC 60384-2 Climatic Category 55/105/21 Rated Temperature 85℃ Rated Voltage 50V~630V Capacitance Range 0.010uF~10.0uF Capacitance Tolerance ±5%(J), ±10%(K), ±20%(M) Voltage Proof 1.6UR(5s) Dissipation Factor ≤0.8% (20℃,1KHz) Insulation Resistance ≥15000MΩ, CR≤0.33uF, ≥5000s, CR>0.33uF (20℃, 100V, 1min)
