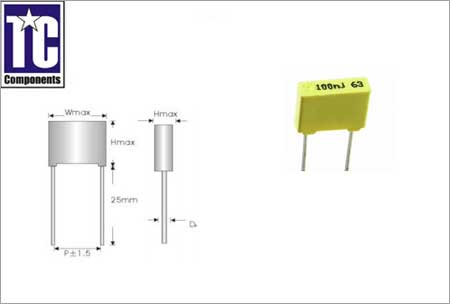

Sub- Miniature Box Type 5mm Pitch Capacitors         Features Long life due to self-healing effect Plastic Shell package   General Specification Description MEF Mini Box CL 23B Climatic Category 40/100/21 Rated Temperature 85℃ Rated Voltage 50V（63V） , 100V , 250V,400V Capacitance Range 0.010uF~1.0uF Capacitance Tolerance ±5%(J), ±10%(K), ±20%(M) Voltage Proof 1.6UR (5s) Dissipation Factor ≤ 0.01(1KHZ 23℃) Insulation Resistance ≥15000MΩ, CR≤0.33uF, ≥5000s, CR>0.33uF (20℃, 100V, 1min)
