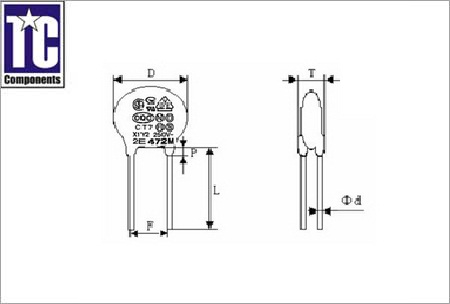

X1Y2 Series General Specification
Ideal for across the line applications
Compact size
Cost effective product
X1Y2 General Specification

Operating temp. Range

-25 To +125 (vde recognized)


within the specified tolerance at 1khz±20%, 1. 0±0. 2vrms

Capacitance tolerance

k: ±10%, m: ±20%

Dissipation factor (df)

≤2. 5% at 1khz±20%, 1. 0±0. 2vrms

Dielectric withstanding voltage

2600vac for 2~5s

Insulation resistance (IR)

10000mω min at 500vdc and 1 minute electrification
