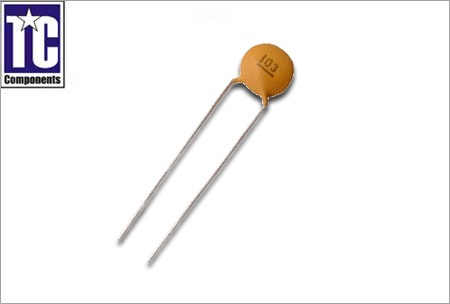

CT1 High Dielectric Constant Ceramic Capacitor (Class II)         Features   Nonlinear Capacitance change over Temperature Suits for By-pass, Coupling Circuit   General Specification Operating Temp. Range Y5P, Y5U, Y5V -25? to +85?, Z5U,Z5V +10? to +85? Capacitance Within the specified tolerance at 1KHz±20%, 1.0±0.2Vrms Capacitance Tolerance K:±10%, M:±20%, Z: +80% -20% Dissipation Factor (DF) Y5P, Y5U, Z5U; DF=2.5%, BN=0.5% Y5V, Z5V; DF=5.0% at 1KHz±20%, 1.0±0.2Vrms Rated Voltage 50V to 500V Dielectric Withstanding Voltage 2.5UR for 2 to 5 S (charge /Discharge current=50mA ) (IR) Insulation Resistance 4000MO min at rated voltage and 1 minute electrification
