Metallized Polyester Film Capacitors

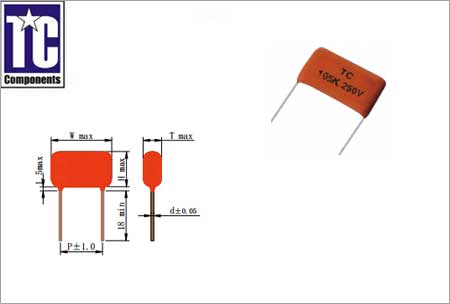

Construction

These are non-inductively wound with metalized polyester film as dielectric / electrode with copper –clad steel leads and epoxy resin coating

Features

Wide capacitance range, small size

Long life due to self-healing effect

Suitable for blocking, by pass and coupling of DC and signals of VHF range

Widely used in filter,noice suppression and low pulse circuits

Specification

Description	MEF CL21 MPET
Reference standard:	IEC 60384-2
Climate Category:	55/105/21
Rated Temperature:	85℃
Rated Voltage:	50V~630V
Capacitance Range:	0.010uF~10.0uF
Capacitance Tolerance:	±5%(J), ±10%(K)
Voltage Proof:	1.6UR(5s)
Dissipation Factors:	≤1.0% (20℃,1KHz)
Insulation Resistance:	UR≤100V: ≥15000MΩ, CR≤0.33uF ; ≥5000s, CR>0.33uF (20℃, 10V, 1min) UR＞100V: ≥30000MΩ, CR≤0.33uF; ≥10000s, CR＞0.33uF (20℃, 100V, 1min)
