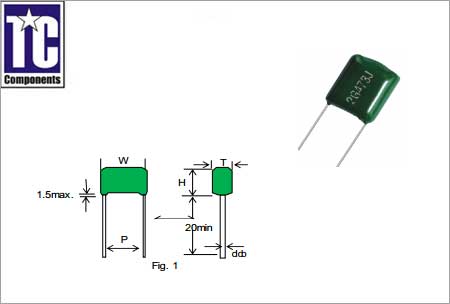

Plain Polyester Film Capacitors



Construction
These are inductively wound polyester film as dielectric and aluminum foil as the electrode with copper-clad steel leads and epoxy resin coating

Features
Small size, light weight and low cost
High stability and reliability
Dissipation factor is small because the leads are directly welded to electrodes
Widely used DC and pulsating circuit of radio ,TV sets and various electronics equipment

Specification
Description: PEI CL11 PET
Reference Standard: IEC 60384-11
Climate Category: 55/105/21
Rated Temperature: 85℃
Rated Voltage: 50V~1200V
Capacitance Range: 0.0010uF~0.47uF
Capacitance Tolerance: ±5%(J), ±10%(K), ±20%(M)
Voltage Proof: 2.0UR (5s)
Dissipation Factors: ≤1.0% (20℃,1KHz)
Insulation Resistance: ≥30000MΩ, CR≤0.1uF ≥10000MΩ, CR﹥0.1uF (20℃,1min)
