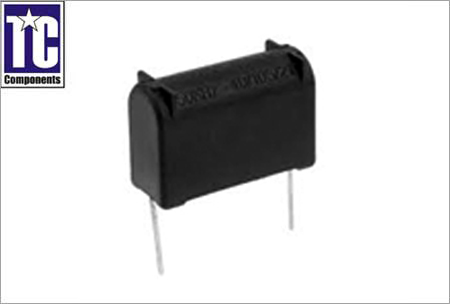

Reference standard

GB/T14472 、IEC384-14 、UL1283

Climatic category

40/105/21

Rated voltage

150VAC、275 VAC (50/60Hz)

Capacitance range

0.01μF～12μF

Capacitance tolerance

±5%(J)、±10%(K)

Voltage proof

between terminals

1.8*UR/60s

between terminals and case

2*UR+1000（VAC）/ 60s(≥2000VAC)

Insulation resistance     (20 ℃)

between terminals

≥5000S (100Vdc,60s)

between terminals and case

≥30000MΩ (100Vdc,60s)

Tangent of loss angle  (20 ℃)

≤0.001 (1KHz )

Pulse rise time(dv/dt)

30V/μs Max

Dimension（Unit：mm）

Rated Cap.

275VAC

L

W

H

P

Фd

1.0μF

30

8

15

26.5

0.8

1.2μF

31

8

19

26.5

0.8

1.5μF

32

11

20

26.5

0.8

2.0μF

30

12

19

26.5

0.8

2.2μF

32

12

22

26.5

0.8

3.0μF

36

13

20

31

0.8

3.3μF

36

13

23

31

0.8

4.7μF

36

17

26

31

1
